Aluminum casting is a technique used to manufacture products of various shapes by pouring molten aluminum into a mold. This article provides a detailed explanation of the definition, processes, types, advantages and disadvantages, and applications of aluminum casting. In recent years, aluminum casting has been attracting increasing attention due to the growing need for lighter weight and higher performance in automobiles, aircraft, and other products. Aluminum castings are lightweight, corrosion-resistant, and can be used to create complex shapes, making them suitable for a wide range of industrial applications. Through this article, we will deepen our understanding of the basic knowledge of aluminum casting to the latest technological trends, and explore its potential.
What is Aluminum Casting?
Definition and Overview of Aluminum Casting
Aluminum casting refers to the process of manufacturing a product of the desired shape by pouring molten aluminum into a mold and allowing it to cool and solidify, or to the finished product itself. When considered as a product, it refers to specific cast products such as engine parts and housings, and when considered as a process, it refers to a series of operations such as melting, mold making, pouring, cooling, and finishing.
In other words, “aluminum casting” is a comprehensive term for the entire “casting” process for making “aluminum castings” (products). Because it can be confusing, it is important to distinguish between “aluminum castings (products)” and “aluminum casting (process)” depending on the context.
Comparison of Aluminum Castings with Other Metal Castings
Aluminum castings have the following characteristics compared to other metal castings such as iron and copper.
- Lightweight: Aluminum has a lower density than iron or copper, making it possible to produce lightweight products.
- Corrosion resistance: Aluminum forms an oxide film on its surface, exhibiting excellent corrosion resistance.
- Strength: Aluminum has lower strength than iron or copper, but its strength can be increased by alloying.
- Cost: Aluminum is more expensive than iron, but costs can be reduced by using mass-production manufacturing methods such as die casting.
| Property | Aluminum Casting | Iron Casting | Copper Casting |
|---|---|---|---|
| Lightweight | Lightweight | Heavy | Heavy |
| Corrosion resistance | Excellent (forms an oxide film on the surface) | Prone to rust | Excellent |
| Strength | Lower than iron or copper (can be improved by alloying) | High | High |
| Cost | More expensive than iron (can be reduced by die casting, etc.) | Inexpensive | More expensive than aluminum |
Role of Aluminum Casting Factories
An aluminum casting factory (foundry) is a specialized facility that performs all processes of aluminum casting in an integrated manner. High-quality aluminum castings require advanced technology, equipment, and experienced engineers. Aluminum casting factories provide high-quality aluminum castings by selecting the optimal aluminum alloy, selecting the casting method, and managing quality according to customer needs. In recent years, the introduction of 3D printers and digital twin technology has made it possible to manufacture aluminum castings with even higher precision and complex shapes.

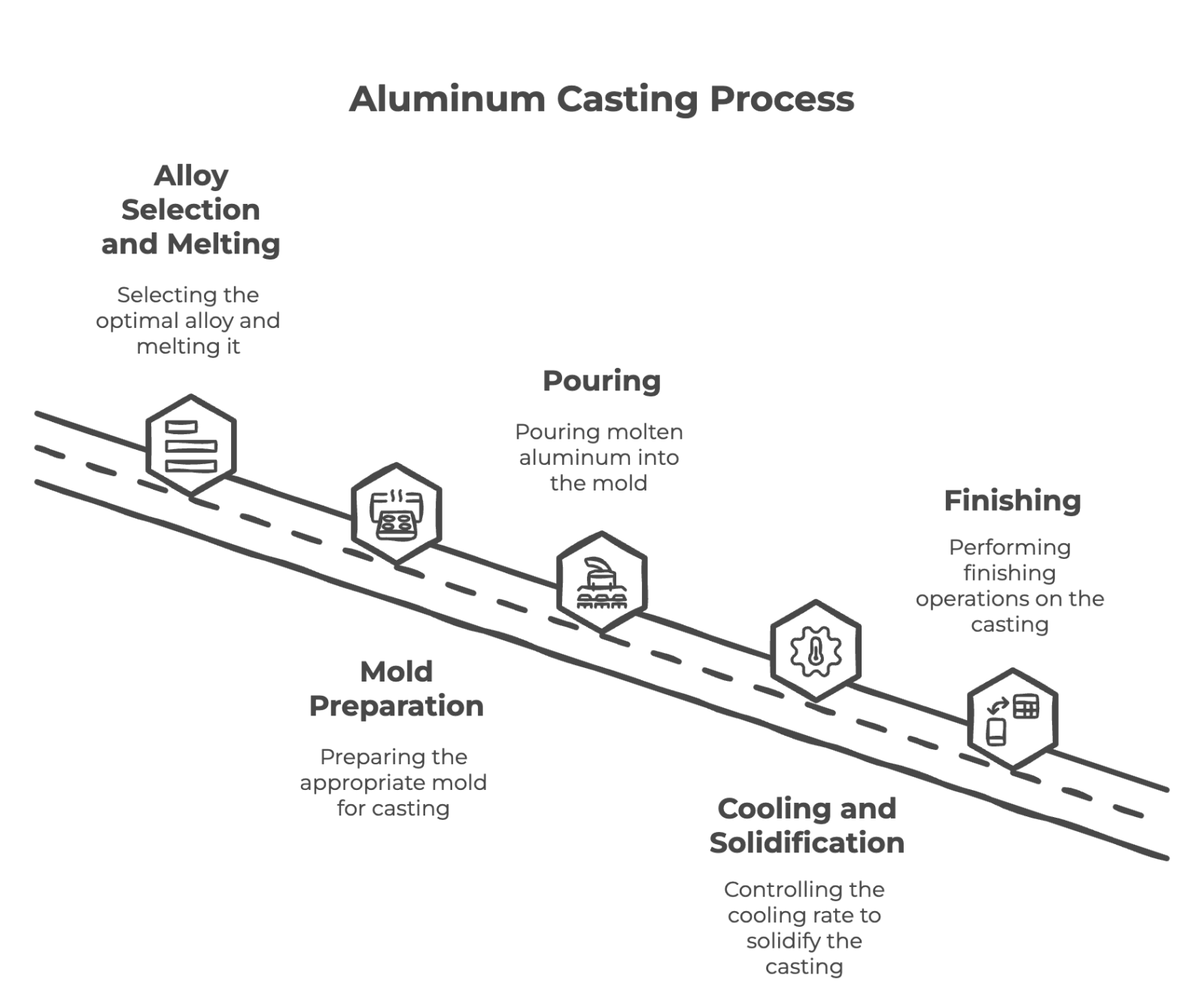

Aluminum Casting Process
Aluminum castings are manufactured through several key steps. Process control at each step greatly affects the quality of the final product.
Key Steps in Aluminum Casting
(1) Alloy Selection and Melting
First, the optimal aluminum alloy is selected considering the customer’s required strength, corrosion resistance, and application. Once the alloy is determined, the aluminum is melted using a melting furnace. At this time, a refining agent called flux may be used to prevent oxidation and remove impurities. The melting temperature varies depending on the type of alloy, but it is generally heated to 660°C or higher.
(2) Mold Preparation
In aluminum casting, the “mold” into which the molten aluminum is poured is important. There are various types of molds, such as sand molds, metal molds, investment casting molds (lost wax casting), and gravity casting molds, each with its own characteristics. The optimal mold is selected considering the product shape, required accuracy, production volume, and cost.
(3) Pouring
The molten aluminum is poured into the mold. Temperature control is very important in this process. Maintaining the proper temperature ensures the fluidity of the aluminum and prevents the occurrence of casting defects and incomplete filling.
(4) Cooling and Solidification
The aluminum poured into the mold is cooled and solidified. The cooling rate must be strictly controlled because it affects the final crystal structure and mechanical properties of the casting. Rapid cooling can cause internal stress and cracking.
(5) Finishing
The solidified aluminum casting is removed from the mold and finished. Finishing operations include deburring, polishing, painting, and heat treatment to meet customer requirements. Deburring is the process of removing excess material left on the parting line of the mold, and polishing is the process of smoothing the surface. Heat treatment may be performed as needed to improve strength and corrosion resistance.
Types of Aluminum Casting
Aluminum casting can be broadly classified into types such as sand casting, die casting, lost wax casting, and gravity casting. Since each has different characteristics, it is important to select the optimal method considering the product application, production volume, cost, and other factors.
Main Aluminum Casting Methods
(1) Sand Casting
Sand casting is a traditional casting method that uses a mold made mainly of sand. Sand molds can be made relatively inexpensively and can handle complex shapes, making them suitable for prototypes and small-volume production. However, it also has the disadvantage of rough casting skin and low dimensional accuracy.
(2) Die Casting
Die casting is a casting method in which molten aluminum is injected into a metal mold at high pressure. It has high dimensional accuracy and surface smoothness, and is suitable for mass production. However, the cost of manufacturing the mold as an initial investment is high, so it is selected when mass production is expected. It has the advantage of being able to manufacture thin-walled and complex-shaped products.
(3) Investment Casting (Lost Wax Casting)
Investment casting, also known as lost wax casting, is a method in which a prototype made of wax is covered with ceramic or the like to make a mold, the wax is melted out, and molten aluminum is poured into the resulting cavity. It provides very high dimensional accuracy and smooth casting skin, but the process is complex and costly, making it suitable for small to medium volume production of precision parts.
(4) Gravity Casting
Gravity casting is a method in which molten aluminum is poured into a metal mold by gravity. Compared to die casting, mold costs are lower and it is suitable for medium volume production. Dimensional accuracy is higher than sand casting and relatively good, although not as high as die casting.
Comparison of Casting Methods
| Item | Sand Casting | Die Casting | Lost Wax Casting | Gravity Casting |
|---|---|---|---|---|
| Cost | Low | High | High | Medium |
| Production Volume | Small to Large | Large | Small to Medium | Medium |
| Dimensional Accuracy | Low | High | Very High | Relatively Good |
| Surface Roughness | Rough | Smooth | Smooth | Medium |
| Complex Shapes | Possible | Possible | Possible | Possible |
| Thin-Walled Shapes | △ | ○ | ○ | △ |
Advantages and Disadvantages of Aluminum Casting
Aluminum casting has various advantages, but also some disadvantages. When developing and manufacturing products, it is necessary to understand both the advantages and disadvantages and determine whether aluminum casting is the best option.
| Advantages | Disadvantages |
|---|---|
| Lightweight (reduced transportation costs and fuel consumption, reduced environmental impact) | High initial investment costs (especially die casting and lost wax casting) |
| Ability to handle complex shapes (improved design freedom, reduced number of parts) | Possibility of casting defects (porosity, cracking, deformation) |
| Excellent corrosion resistance (ideal for corrosive environments) | Limits on strength and heat resistance (can be improved by alloy selection and heat treatment) |
| High dimensional accuracy and surface roughness (die casting, lost wax casting) | Need for post-processing (deburring, surface treatment) |
| Recyclability (reduced environmental impact) | |
| Excellent thermal conductivity (ideal for parts with excellent heat dissipation) |
Advantages
- Lightweight: Aluminum has a lower density than iron or copper, contributing to product weight reduction. This leads to reduced transportation costs and improved fuel efficiency, which is also effective in reducing environmental impact.
- Ability to handle complex shapes: Aluminum casting can integrally mold products with complex shapes, increasing design freedom and reducing the number of parts.
- Excellent corrosion resistance: Aluminum forms a natural oxide film on its surface, providing excellent corrosion resistance. It is ideal for parts used in corrosive environments.
- High dimensional accuracy and surface roughness: Die casting and lost wax casting can achieve high dimensional accuracy and smooth surface roughness. It is also suitable for manufacturing precision parts.
- Recyclability: Aluminum is easily recyclable, contributing to reduced environmental impact.
- Excellent thermal conductivity: Aluminum has excellent thermal conductivity, making it suitable for manufacturing parts with excellent heat dissipation.
Disadvantages
- Initial investment costs: Especially in die casting and lost wax casting, high initial investment is required for mold production. It can be costly for small-volume production.
- Possibility of casting defects: Depending on the casting process, defects such as porosity (casting defects), cracking, and deformation may occur. Proper quality control is important.
- Limits on strength and heat resistance: Aluminum tends to have lower strength and heat resistance than iron or copper. However, this can be improved by selecting alloys and heat treatment.
- Need for post-processing: Post-processing such as deburring and surface treatment may be required after casting.
Applications of Aluminum Castings
Aluminum castings are widely used in various industrial fields due to their excellent properties.
Automotive Industry
In the automotive industry, the demand for aluminum castings is expanding due to the increasing need for improved fuel efficiency and reduced CO2 emissions through weight reduction. Aluminum castings are used in various parts such as engine blocks, cylinder heads, transmission cases, wheels, and brake components.
Aerospace Industry
In the aerospace industry, aluminum castings play an important role as weight reduction and high strength are required. Aluminum castings are used in aircraft body structural parts, engine parts, wing parts, and landing gear.
Construction Industry
In the construction industry, aluminum castings are used for window frames, door knobs, handrails, fences, and architectural hardware. It is suitable for outdoor use because of its excellent corrosion resistance. Another advantage is that it can maintain a beautiful appearance for a long time.
Industrial Machinery
In industrial machinery, aluminum castings are used for pump housings, valve bodies, gearboxes, compressors, motor housings, and the like. It is ideal for parts that require weight reduction, corrosion resistance, and good machinability.
Other
Aluminum castings are used in various other fields.
- Home appliances: housings, frames, heat dissipation fins, etc.
- Bicycle parts: frames, wheels, handles, etc.
- Sports equipment: golf clubs, baseball bats, bicycle frames, etc.
- Daily necessities: pots, frying pans, cookware, etc.
In this way, aluminum castings are used in a variety of fields and play an important role in supporting our lives.
Summary
Aluminum casting has become an indispensable technology in various industrial fields such as automobiles, aerospace, construction, and industrial machinery due to its excellent properties such as light weight, corrosion resistance, and ability to handle complex shapes. Especially in recent years, aluminum castings, which contribute to improved fuel efficiency and reduced CO2 emissions through weight reduction due to increasing interest in environmental issues, are becoming increasingly important for the realization of a sustainable society.
Aluminum casting technology is constantly evolving, including simulation using digital twin technology, process optimization using AI, and development of new high-strength and high-heat-resistant materials. These technological innovations will expand the further potential of aluminum castings and enable the manufacture of more precise, high-quality, and environmentally friendly products. In the future, aluminum casting is expected to contribute to the advancement of various industries and the improvement of our lives.
